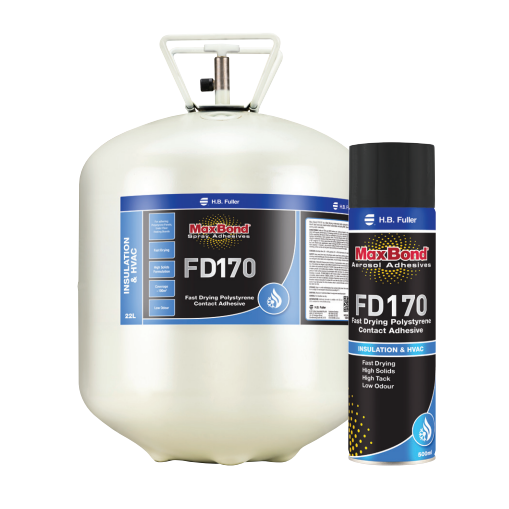

MaxBond FD170 Polystyrene EPS / XPS Sprayable Contact Adhesive

Product Overview

MaxBond FD170 Polystyrene Adhesive is a high solids, extremely tacky spray adhesive free from all chlorinated solvents. The fast drying adhesive is developed for bonding polystyrene to itself and various substrates including mdf, chipboard, plywood and other timber sheet materials. It will also bond to most common building materials such as plasterboard, aluminum, concrete, brickwork and steel.

For adhering: Polystyrene, Insulation, Foam, Sarking, Building Wrap

Product Features

• Non-Chlorinated
• High Heat
• Low VOC
• Low Odour
• High Strength
• Fast Dry
• Long Open Time
• High Solids

Industries and Material Compatibility

Main Industry: HVAC

Material Compatibility: Polystyrene (EPS / XPS), Metals, Foams, Insulation

Limitations: Do not use on Flexible PVC

Performance

Temperature Resistance	70°C
Drying Time	1 - 2 min
Open Time	60 min
Solids Content	35%
Spray Pattern	Web
Colour	Clear / Colourless

Product Application

Canister

USE IN A WELL-VENTILATED AREA.

1. Surfaces to be bonded should be clean, dry, grease and dust free. If cleaning solvents are used, allow adequate time for drying and wipe surface with a clean cloth before applying adhesive.
2. Fully open the valve on the canister. Direct the gun at the surface which it is to be bonded, at a 90 degree angle. Spray adhesive 10-15cm away and apply a generous even coat of adhesive.
3. Ideal application: 10-15cm bands of adhesive overlapping by 50% spraying one surface vertically and the other horizontally. Avoid over application. Ideal coverage 80-100%. Do not concentrate in one area or allow to puddle. On porous surfaces a second coat maybe necessary (after the first coat dries apply a second coat evenly).

Aerosol Can

USE IN A WELL-VENTILATED AREA.

1. Surfaces should be clean, dry and free from grease oil and dust.
2. Hold the aerosol at approximately 70 degrees to the surface and apply a uniform coat of adhesive to both substrates, ensuring 80-100% coverage. Spray one surface vertically, the other horizontally and pay particular attention to the edges. Porous substrates may require two applications.
3. The adhesive is ready to bond when it feels dry to the touch and does not transfer. Drying takes approximately 1-2 minutes depending on substrates, temperature and humidity. Bring the surfaces together and apply a uniform pressure over the work piece. Full cure will take 24 hours.
4. To prevent spray nozzle from blocking, at the end of each period of use, turn the can upside down and press nozzle until spray is clear of adhesive.
5. Excess adhesive can be removed with solvent cleaner removed with a suitable solvent cleaner.

Coverage

Aerosol: 6m²

Canister: 300m²

Limitations

Do not use on flexible PVC. FD170 dries within two minutes under normal conditions but this will vary under different temperatures and humidities. High humidity and low temperatures will slow the drying time and if the temperature gets very low can produce bloom. Bloom is moisture which forms on the glue line caused by solvent evaporation lowering the air temperature above it.

Shelf Life and Storage

Protect from extremes of temperature in a controlled environment between 15 and 35°C, and away from direct sunlight.

Do not stand on a cold concrete floor. Low temperatures can result in irreparable separation of the adhesive. If the adhesive sprays like a jet the canister is too cold, warm to at least 10°c before using. DO NOT ALLOW THE PRODUCT TO FREEZE

Stored under the correct conditions in original unopened containers the product will have a shelf life of 18 months.

Downloads

MaxBond FD170 Technical Data Sheet | MaxBond FD170 Canister SDS | MaxBond FD170 Aerosol SDS
