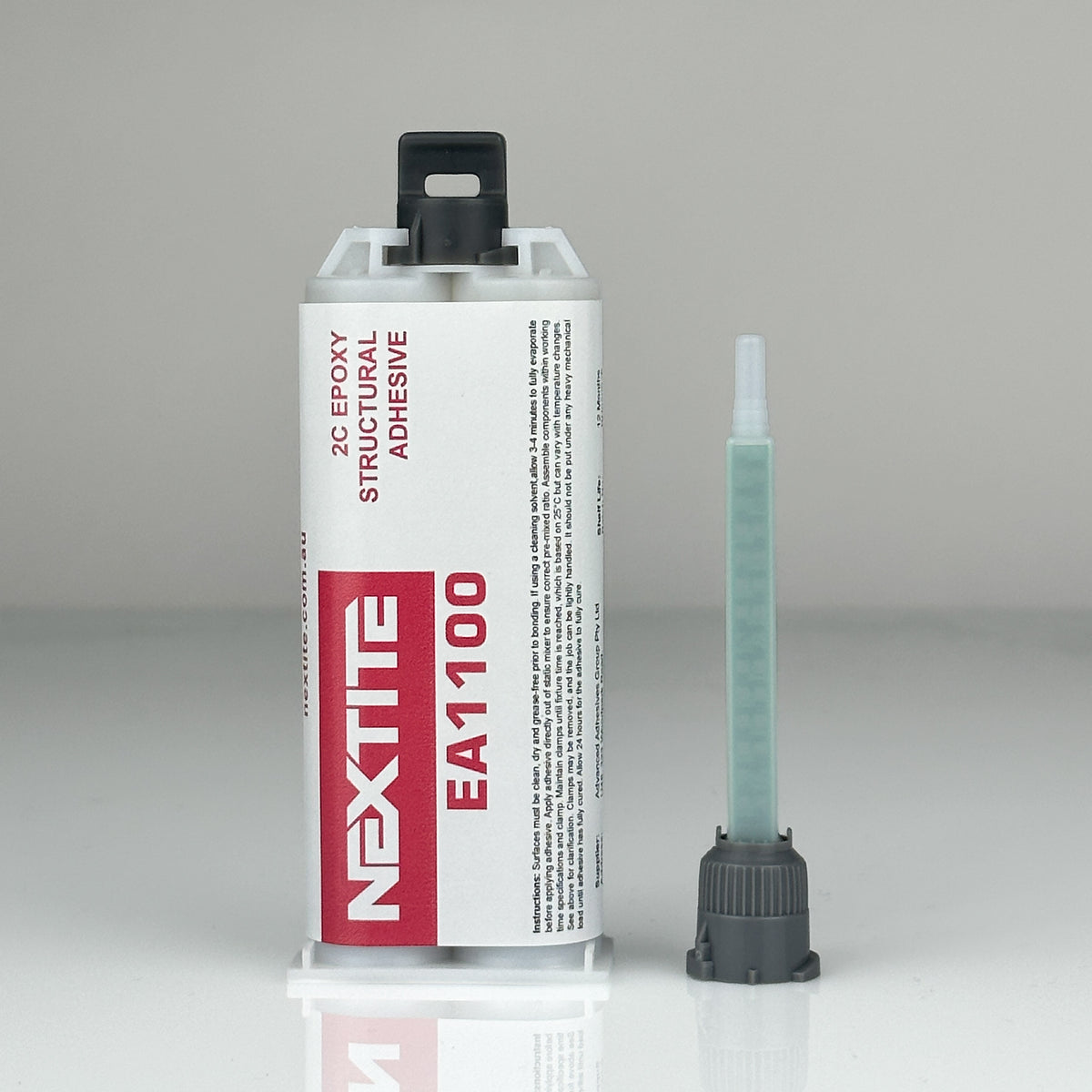

NEXTITE EA1100 5 Minute Clear Structural Epoxy Adhesive
Product Overview
Materials Bonded
NEXTITE EA1100 bonds to a variety of substrates they include but aren’t limited to:
- Plastics: Acrylic (PMMA), Polycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS), Polyvinyl Chloride (PVC)
- Metals: Aluminium, Steel, Stainless Steel, Galvanised Metals, Powder Coated Surfaces, Brass, Copper
- Elastomers: SBR, Nitrile, Neoprene
- Composites: Fibreglass Reinforced Plastic (FRP), Carbon Fibre (CF)
- Other: Glass, Concrete, Wood, MDF, Ceramics, China, Tile, Concrete, Stone
NEXTITE EA1100 is not recommended for polyethylene, polypropylene, non-stick coatings, nylon products, or flexible materials.
Applications and Uses
- General purpose structural bonding and assembly
- Permanent bonding of similar materials
- Industrial manufacturing and component assembly
- Construction, maintenance and general repairs
- Bonding applications requiring a clear or transparent bond line
- Repairs and assembly where fast handling is required
- Applications where the cured adhesive needs to be machined or drilled
- Components subject to impact, vibration or repeated loading
- Demanding repairs requiring a high-strength rigid bond
Tools and Accessories
NEXTITE EA1100 requires the use of a compatible dual cartridge dispensing applicator and static mixer nozzles, sold separately. Both the 50mL and 400mL Cartridges use standard 1:1 Ratio dual cartridge dispensing applicators and static mixers. It is important to use the correct applicator and mixer for each cartridge size, as 1:1 ratio systems are not compatible with other ratios cartridges and accessories. Each cartridge type requires the matching dispensing applicator and static mixer designed specifically for its ratio.
50mL Tubes
Dispensing Applicator: Manual 50mL 1:1 Dispensing Applicator | Manual Hand Plunger for 1:1 50mL Cartridges (for one time use)
Static Mixer Nozzles: 1:1 50mL Quadro B Type Standard Tip
Technical Highlights
| Â | Specification |
| Adhesive Type | Epoxy |
| Colour | Clear |
| Mix Ratio | 1:1 |
| Key Substrates | Metals, Plastics and Composites |
| Viscosity | 8,000 - 15,000 CPS |
| Maximum Gap Fill | 4mm |
| Working Time | 5 min |
| Time to Handling Strength | 15 - 20 min |
| Full Strength | 24 - 48 hrs |
| Operating Temperatures Intermittent | - 20 to 150°C |
| Operating Temperatures Constant | - 20 to 75°C |
Strength Tests
| Â Substrate | Lap Shear Strength psi (MPa) |
| Aluminium (Grit Blasted) | 1500 (10.35) |
| Steel (Grit Blasted) | 1000 (6.89) |
| Copper | 950 (6.55) |
| Brass | 700 (4.83) |
| Stainless Steel | 750 (5.17) |
| Galvanized Steel | 900 (6.21) |
| ABS | 490 (3.38) |
| PVC | 330 (2.28) |
| Polycarbonate | 250 (1.72) |
| Acrylic | 100 (0.69) |
| FRP | 950 (6.55) |
| SBR/Steel | 125 (0.86) |
| Neoprene/Steel | 140 (0.97) |
| Nitrile/Steel | 140 (0.97) |
Instructions for use
- Use a static mixer nozzle to accurately mix the contents of the 1:1 cartridge. Each cartridge includes one Static Mixer Nozzle Green 1:1, and you can purchase more in 5, 10 and 50 packs from our store.
- You will also require a 1:1 Static Mixing Dispenser to push the contents through the static mixer. This is the best way to apply it and get accurate, dependable results every time.
- Parts to be joined should fit without forcing and be clean, it is recommended to use NEXTITE PROPREP prior to applying any product to remove any oils, dust and dirt. It is important to let out any air bubbles and ensure adhesive is fully mixed by dispensing the first part of the cartridge onto some paper. This is to make sure the two separate parts are fully mixed and is generally the first 2-3mL. Apply adhesive directly from the static mixer.
- Press parts together in firm contact and use a clamp to secure while the glue reacts. NEXTITE EA1100 will achieve a working strength within 15-20 min and full cure strength within 24-48 hours. You have approximately 5 minutes to work with the glue before it starts to set off.
Please check the TDS for material suitability and strength of each bond. For a tutorial how to use please refer to our YouTube Chanel.
Shelf Life, Storage and Pack Size
NEXTITE EA1100 has a 15 Month Shelf Life when stored correctly.
Store in a cool dry place out of direct sunlight, an enclosed cabinet is recommended, to extend the shelf life of this product. Keep the open container tightly closed do not leave open.Â
50mL and 400mL Cartridges.
Downloads
NEXTITE EA1100 Technical Data Sheet | NEXTITE EA1100 Safety Data Sheet
